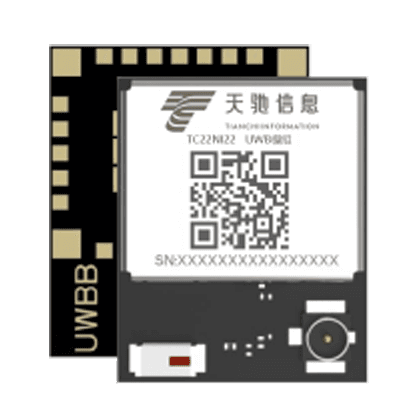

UWB module TC22NI22 is an ultra-wideband transceiver module developed by Tiantai Information based on NCJ29D5 design. The module integrates antenna and RF circuit, which can be used in TDOA positioning system, with a positioning accuracy of 10cm~30cm and a data rate of 7.8Mbps.
-40～+105°
LGA package
AEC-100
Meet the requirements of IATF 16949 standard and the requirements of quality management processes in the automotive industry such as APQP and PPAP
- The material meets the standards of AEC-100 and AEC-200 vehicle specifications
- Comply with IEEE 802.15.4-2011 UWB standard
- Comply with IEEE 802.15.4z BPRF/HPRF UWB standard
- Power consumption <2µA in sleep mode
- Ultra-wide temperature range: -40～+105° full-featured operation
- Superior anti-electromagnetic interference ability to ensure good
- robustness in the electromagnetic environment of the vehicle
- Power supply range: 1.8V～3.6V
- Active current: <3mA
- RX current: <170mA
- TX current: <120mA
- Static power consumption: <2µA
- Size: 13.5mm x 16.5mm x 2.9 mm
- Working temperature: -40～+105°
- Extended temperature: -40～+115°
- Interface: SPI
- UWB frequency band: 6.0～8.5GHz
