TYPE C 测试仪

TYPE C 接口全功能测试
自主研发，用于笔记本，台式机等产品的TYPE-C接口的全功能测试.
提供软硬件二次开发

Type C port features
Ø USB 3.1 and USB 2.0 signals
Ø Gen1 & Gen2 speed
Ø DP
Ø >=65W power charge
Ø Power delivery

Test solutions gap in factory
Ø No one-stop solution to cover all Type C features in fixture
Ø No power delivery test solution
Ø No DP solution to cover 4 lanes

Type C Port Pins Assignment and Functions

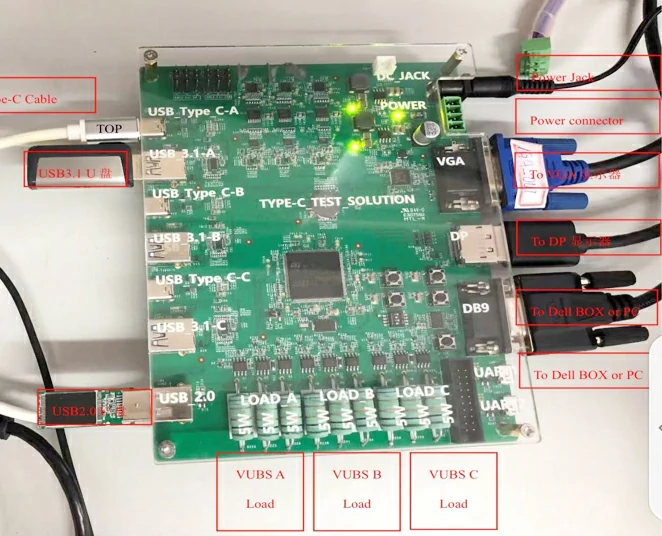

type-c-test-system — Test Card Connectors Map

Signals	Details	Application notes
USB3.1 USB2.0	Use USB3.1 U key and 2.0 U key to cover USB3.1 top and bottom signals	Can cover three groups of Type C USB 3.1 and USB2.0 signals
DP	Use DP display to cover DP top and bottom signals,4 lanes	Need to switch to cover three groups of Type C DP 4 lanes features
VGA	VGA display to cover VGA top and Bottom signals,DP 2 lanes	Need to switch to cover three groups of Type C DP 2 lanes features
Power delivery	VBUS_C 1A VBUS_C 2A VBUS_C 3A	Can cover three groups of Type C power delivery signals

Coverage of New Type C Solution Test Card
